File Transfer
The basic unit of storage in virtually all modern computer systems is
the file. A fundamental requirement in networked systems is
access to
files which are stored on remote computers. There are at least two
models which can be used for this:
- User's files can be stored on a remote file server, which
allows
shared access. The files always remain stored on the server's disk,
but are accessed as though they are stored locally. The fact
of their
remote storage is transparent to the user, and the fact that
the
netork is used is not (necessarily) obvious. This is the way students'
home directories are stored on the Bendigo Unix systems.
- Files can be shared by copying them from one system to another,
performing any desired operations, and (maybe) copying them back. This
is called "file transfer", although the thing that gets transferred is
a copy of the file, not the actual file - it still exists on the
remote system. The networked nature of file transfer is apparent in
the commands which are used.
File Transfer - FTP
The FTP protocol has the following features:
- Interactive access
- The user's view of FTP is a kind of "shell" with a limited command
set. Some user commands include:
- get <filename>
- put <filename>
- cd
- ls
- help
- File format specification.
- FTP allows the user to specify conversions for (eg) text or image
(binary) files and text file character set (ASCII or EBCDIC).
- Authentication control
- The FTP server requires clients to authenticate themselves by
providing a valid username and password before allowing them to
perform file transfers.
FTP is documented in RFC 959.
FTP Process Model
An FTP client process establishes a control connection to an FTP
server, waiting (listening) at the standard FTP port 21. This
connection carries all FTP commands and responses.

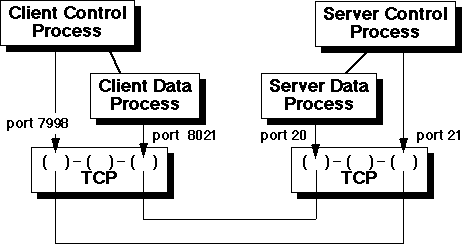

When a file is to be transferred, the client process opens a new
connection to the server at port 20, the FTP data transfer port. This
connection is used to carry the actual data in the file. In Unix-like
systems, this is usually achieved by "forking" a child process at each
end of the connection, thus:

One interesting aspect of FTP is that the control connection is
implemented using a subset of the TELNET protocol, using the TELNET NVT.
Anonymous FTP
Many systems provide a special FTP service whereby the username
"anonymous" allows access to a public file area:
redgum 27> ftp munnari.oz.au
Connected to munnari.oz.au.
220 munnari.OZ.AU FTP server (Version 5.91 95/11/08 02:44:16) ready.
Name (munnari.oz.au:pscott): anonymous
331 Guest login ok, send ident as password.
Password: p.scott@latrobe.edu.au
230 Guest login ok, access restrictions apply.
Remote system type is UNIX.
Using binary mode to transfer files.
ftp> cd rfc
250 CWD command successful.
ftp> get rfc959.Z
200 PORT command successful.
150 Opening BINARY mode data connection for rfc959.Z (48587 bytes).
226 Transfer complete.
48587 bytes received in 4.5 seconds (10 Kbytes/s)
ftp> close
221 Goodbye.
ftp> quit
FTP Control Messages
On the previous slide, some interesting aspects of FTP can be seen.
File Sharing - NFS

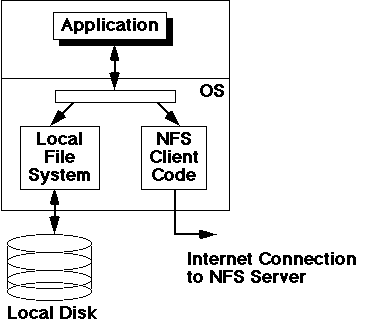

The Network File System (NFS) was developed by Sun MIcrosystems,
and is
the defacto standard for transparent filesystem sharing in Unix and some
other environments. NFS is embedded in the operating system of a client,
thus:

Remote Procedure Call
NFS is built on two tools: a Remote Procedure Call (RPC) mechanism and a
general purpose eXternal Data Representation (XDR) definition and
library. These tools are also the basis of the OSF Distributed Computing
Environment (DCE) specification.
RPC allows a programmer to write distributed systems while not being
aware of the actual code and protocols which are used to implement them
over the network. A remote procedure call (or function call for those
sad souls who have only programmed in C) has semantics exactly the same
as a local call, making such programming relatively straightfoward.
The XDR library code transparently performs a mapping between local data
representations and a standard format which actually crosses the network
in the RPC call and return messages. Possibly the best example of the
need for this is the byte ordering problem which exists between the
Intel/DEC world (little endian) and everyone else in the universe (big
endian).
The utilities which build an RPC application automatically call XDR
before transferring any data.
This lecture is also available in PostScript format.
The tutorial for this lecture is Tutorial #04.
Phil Scott
