IP Datagrams

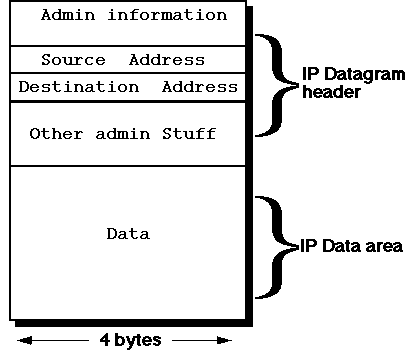

IP transmits data in packets called datagrams. A datagram
contains a
header and some data, thus:

Notes:
- The total length of a datagram can be up to 64 KB, but is usually
less than 1500 bytes
- The header contains the source and destination IP addresses as
well as various other administrative data, a minimum of 20 bytes in
total
IP: Connectionless Datagram Delivery
IP data transfer across an internet is based on three fundamental
principles:
- Unreliable delivery
- delivery of data is not guaranteed. A
packet
of data may be lost in the network, may be duplicated (ie: delivered
twice) or may be delivered out of order. The IP service will not
detect such conditions, nor will it notify the sender or receiver if
they occur.
- Connectionless delivery
- each packet is treated entirely
indpendently of all others. No information is kept as to which
packets have been forwarded, and packets may travel over different
routes to the same destination.
- Best-Effort delivery
- the packet delivery mechanism is
engineered to
always deliver packets if possible. It will not gratuitously drop
packets: unreliability should only occur when underlying resources
(eg buffer space) are exhausted.
These specifications allow the IP service to concentrate on its job:
delivering packets. As we have seen, higher level protocols
(usually TCP) transform the IP service into a reliable, sequenced
interprocess communications mechanism.
IP Routing
There are two levels of complexity involved in IP routing:
- Local delivery
- when the IP software is presented with a
datagram
for delivery, it first checks the network part of the destination
address to see if matches its own network number. If it does, then
the datagram can be delivered locally, and is simply handed to the
physical network delivery system (typically an Ethernet device
driver) for direct encapsulation and delivery.
- Internet delivery
- if the network numbers are different, then
the
datagram must be forwarded to a router (or IP gateway). In this
case, the datagram is forwarded (using direct delivery as above) to
the appropriate router for on-delivery
- Datagrams cross gateways (routers) from network to network until
they reach a network where they can be locally delivered.
- The IP software must keep a routing table to know the
IP address of
an appropriate router. This is commonly done by defining a
default
route for each network machine.
- Note that routers must have (at least) two IP addresses!
The ICMP Protocol
The Internet Control Message Protocol is used by the IP
datagram
delivery system to communicate with the IP delivery system on another
host Ñ its operation is internal to the IP software on the hosts, and
is not normally visible to the network user.
The IP software encapsulates ICMP messages into the data field of an
ordinary datagram. For example, if a router is forced, for some
reason, to drop a datagram, it sends an ICMP message to the
originator of the datagram explaining the reason. It is up to the
originator to take appropriate action to ensure that subsequent
datagrams are not droppped.
There are several ICMP message types. The echo request and
echo reply
types are used by the UNIX and Internet ping utility to test
reachability. Ping is by far the single most valuable tool
available
to the network manager, and we return to its use when we discuss
network management, later.
The Transport Layer Revisited: UDP
The User Datagram Protocol provides a connectionless alternative
transport service to TCP for applications where reliable stream
service is not needed. UDP datagrams can be droppped, duplicated or
delivered out of order, exactly as for IP.
The UDP transport service add to IP the ability to deliver a datagram
to a specified destination process using a port abstraction,
in an
analogous way to that used by TCP.
Examples of applications where UDP is used include:
- Any application where loss of a datagram is not critical because
later datagrams will imply the missing information. Examples
include:
- A "timekeeper" host sends the current "wallclock" time to a slave
host.
- Routers broadcast copies of their routing tables every 30 seconds.
- An application process which performs its own error correction is
used.
- The reduced overhead of connectionless operation suits some
time-critical applications where (occasional) loss of data may be
unimportant. An example is voice communications over the Internet.
This lecture is also available in PostScript format.
The tutorial for this lecture is Tutorial #08.
