Lecture 10: IP Networks
IP Datagrams

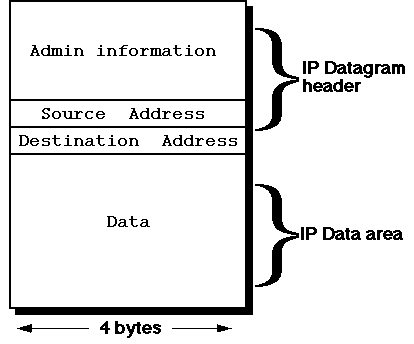

IP transmits data in packets called datagrams. A
datagram contains a header and some
data, thus:
Note: this diagram shows the datagram format of the "current" version
of IP, IPv4.
Datagram Details
- The datagram header contains both the source and destination IP
addresses as well as various other administrative data. This means
that every datagram can be identified, in terms of "where it came
from" and "where it's going".
- Virtually all "real world" datagrams have a minimal length (20
byte) header. Although various optional (extra) header fields are
permitted, these are rarely used in practice.
- Each network in the Internet is characterised by a Maximum
Transmission Unit (MTU), which defines the largest
datagram which can be sent on that network. Whilst the total length
of a datagram can (in theory) be up to 64 KB, "real world" MTU
limits usually mean datagrams are < 1500 bytes in total
length.
- The data field contains "higher layer" protocol data--usually a TCP
segment[1] which IP is delivering
across the Internet. We say that the TCP segment is
encapsulated in an IP datagram. The TCP segment,
in turn, usually contains application protocol data in
its data field.
[1]
although not always: for example, see UDP, later in
this lecture.
IP Routing
There are two levels of complexity involved in IP routing:
- Local delivery
- when the IP software is presented with a datagram for delivery,
it first checks the network part of the destination address to see
if matches its own network number. If it does, then the datagram
can be delivered locally, and is simply handed to the physical
network delivery system (typically an Ethernet device driver) for
direct delivery over the local network.
- Internet delivery
- if the network numbers are different, then the datagram must be
forwarded to a router (or IP gateway). In this case, the datagram
is forwarded (using direct delivery as above) to the appropriate
router for on-delivery
- Datagrams cross gateways (routers) from network to network
until they reach a network where they can be locally delivered.
- The IP software must keep a routing table
to know the IP address of an appropriate router. This is
commonly done by defining a default route for
each network machine.
- Note that routers must have (at least) two IP addresses!
IP: Connectionless Datagram Delivery
IP data transfer across an internet is based on three fundamental
principles:
- Unreliable delivery
- delivery of data is not guaranteed. A packet of data may be
lost in the network, may be duplicated (ie: delivered twice) or may
be delivered out of order. The IP service will not detect such
conditions, nor will it notify the sender or receiver if they
occur.
- Connectionless delivery
- each packet is treated entirely indpendently of all others. No
information is kept as to which packets have been forwarded, and
packets may travel over different routes to the same
destination.
- Best-Effort delivery
- the packet delivery mechanism is engineered to always deliver
packets if possible. It will not gratuitously drop packets:
unreliability should only occur when underlying resources (eg
buffer space) are exhausted.
These specifications allow the IP service to concentrate on its job:
delivering packets. As we have seen, higher level protocols (usually
TCP) transform the IP service into a reliable, sequenced interprocess
communications mechanism.
The Structure of the Internet

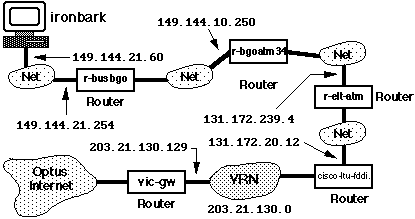

The Internet consists of networks (or, more commonly nowadays --
subnets) connected by routers. The traceroute
utility
shows the path a datagram takes -- the following
traceroute
is from ironbark to the Victorian Regional
Network (VRN).
1 r-busbgo.bendigo.latrobe.edu.au (149.144.21.254) 1 ms 2 ms 1 ms
2 r-bgoatm34.bendigo.latrobe.edu.au (149.144.10.250) 1 ms 1 ms 1 ms
3 r-sctech-atm.latrobe.edu.au (131.172.239.3) 5 ms 4 ms 3 ms
4 cisco-ltu-fddi.latrobe.edu.au (131.172.20.12) 5 ms 4 ms 4 ms
5 vic-gw.vrn.EDU.AU (203.21.130.129) 4 ms 5 ms 4 ms
The Transport Layer Revisited: UDP
The User Datagram Protocol provides a connectionless alternative
transport service to TCP for applications where reliable stream service
is not needed. UDP datagrams can be droppped, duplicated or delivered
out of order, exactly as for IP.
The UDP transport service add to IP the ability to deliver a datagram
to a specified destination process using a port
abstraction, in an analogous way to that used by TCP.
Examples of applications where UDP is used include:
- Any application where loss of a datagram is not critical because
later datagrams will imply the missing information. Some situations
include:
- A "timekeeper" host sends the current "wallclock" time to a
slave host.
- Routers broadcast copies of their routing tables every 30
seconds.
- An application process which performs its own error correction is
used.
- The reduced overhead of connectionless operation suits some
time-critical applications where (occasional) loss of data may be
unimportant. An example is voice communications over the Internet.
The Future: IPv6
(This is Optional Material)
The current version of IP is widely acknowledged to have many
shortcomings. To address these, the Internet Engineering Task
Force (IETF) has defined IP version 6[1]. Some of its features include:
- Addresses are now 128 bits in total length, instead of 32 bits in
IPv4. This is a huge increase!
- The address structure is hierarchical, but is much more complicated
than the simple "address class" used in IPv4.
- Compatible with IPv4 for transition purposes.
- Support for a variety of "service types", etc.
[2] Or, as it was called during its
development, IPng.
