ASN.1 and OSI Data Representation
Key concept: abstract syntax, hence Abstract
Syntax
Notation
One.
ASN.1 is an international standard[1] which was
originally developed
as part of the OSI research, and has been adopted for use in
various areas of the Internet architecture, particularly network
management.
- Defines structure of data objects in a way which is
implementation independent. This can be contrasted with data
definitions in (eg) programming languages.
- An excellent example is the data type integer, which has quite a
different meaning in maths to that which it has in most
programming languages.
- In general, ASN.1 is used to define data objects in an
abstract
(or "real world") way, compared to the concrete definitions used
in programming.
- A companion OSI standard specifies Basic Encoding Rules
(BER)[2],
which define the way in which ASN.1 objects are encoded into
streams of octets for transmission over a network.
[1]ISO/IEC 8824:1987 - ASN.1 is an example of a
Data Description
Language in database terminology
[2]ISO/IEC 8825:1987
ASN.1 Data Types
Simple data types include:
- BOOLEAN(1)
- takes values true and false
- INTEGER(2)
- any positive or negative whole number
- REAL(9)
- expressed as mantissa, base, exponent
- BITSTRING(3), OCTETSTRING(4)
- an ordered
sequence of 0 or more
bits or octets (bytes?)
- NULL(5)
- takes only one value, null...
- ENUMERATED(10)
- a list of values is supplied
Examples of some of these include:
brainDamaged :== BOOLEAN
numberOfEmployees :== INTEGER
avogadrosNumber :== REAL(602,10,23)
sevenDeadlySins :== ENUMERATED {
pride(1), envy(2), gluttony(3), avarice(4), lust(5), sloth(6),
wrath(7)
} -- corresponding to OSI 7 layers :-)
NB: The numbers given in parentheses, eg (1), are called TAGS,
see later this lecture.
ASN.1 Structured Data Types
Structured data types include:
- SET(17)
- a fixed, unordered set of distinct types,
some possibly
optional
- SET OF(17)
- an unordered list of zero or more of
the same type
- SEQUENCE(16), SEQUENCE OF(16)
- a fixed,
ordered list of distinct
or same types.
- CHOICE(11)
- like SET, except more general.
- ANY
- like CHOICE, except containing a list
of anything that can
be defined in ASN.1
Some examples are:
messageBodyPart :== CHOICE {
[0] IMPLICIT asciiText, -- note TAG*
[1] IMPLICIT telex
...etc... }
Tags in ASN.1
Note that in the previous slides, each element of a structured
data item was identified using a TAG.
There are four classes of tags:
- UNIVERSAL
- a universal tag is defined in ISO/IEC 8824 and
gives a
machine-readable identification of all of the basic types of an
ASN.1 specification. The tags attached to the basic data types in
slides 2 & 3 of this lecture are an example.
- APPLICATION
- these tags are only required to be unique
within a
particular application. An example is a tag representing a
particular packet type (PDU) sent by an application.
- CONTEXT-SPECIFIC
- these tags are only required to be unique
within an already tagged type. The tags attached to values in the
CHOICE and ENUMERATED examples in slides 2 &
3 are an example.
- PRIVATE
- these are defined for the use of a particular
organisation and have no meaning outside of that organisation.
Digression on ASN.1 Syntax Conventions
In writing ASN.1 specifications, the case of the
characters used
conventionally indicates to a human reader the part of the ASN.1
grammar in use. Thus:
- A type in ASN.1 is indicated by starting its name
with an
uppercase letter, eg: Gauge.
- for a value (an instance of a type), the word starts
with a
lowercase letter, eg internet.
- The keywords of the ASN.1 language, and macros, are written
entirely in uppercase, eg OCTET STRING
Note that in these notes, an attempt will also be made to present
all ASN.1 (and other) syntactic elements in the fixed-width
courier typeface. Occasional lapses from this convention
may have
to be forgiven by the reader...
Example:
MyType ::= TYPE
nameOfValue MyType ::= VALUE
Note also that, where appropriate, we adopt the OSI convention of
referring to "octets", instead of "bytes", even though the terms
have
almost universally identical meaning.
Basic Encoding Rules - Transfer Syntax for ASN.1
These are needed to disambiguate a stream of bytes
arriving over a
network.
An ASN.1 object is encoded as a TAG, a LENGTH and a VALUE, (TLV
encoding) thus:

The TAG is (usually) encoded in a single octet, containing its
value (see earlier) in binary in the low-order 5 bits and maybe
some other information[3].
The LENGTH can be encoded in two possible ways, definite
(which
usually only requires a single octet) and indefinite
(which
requires, at least, several more octets). Both are equally
complicated!
The VALUE field is encoded using a specified method which is
appropriate to its type - for example, an INTEGER is sent
as its
binary 2's complement equivalent; an OCTET STRING is
simply the
appropriate octets.
[3]The CLASS (see slide 4) of the object (most significant 2 bits), and whether
it is a simple or constructed (structured) data type (1 bit: 0 for simple, 1 for constructed).
BER Examples
A Boolean value of true might be encoded in ASN.1/BER as three
octets, thus:

A small-valued integer might be encoded as:

- Note that the value field is encoded using 2's complement
notation
- If the value is greater than 127 or less than -128, more
octets
are required, hence the length is greater.
A an octet-string encodes just the bytes of the string, thus:
Object Identifiers
ASN.1 might be of only passing interest were it not for the
OBJECT
IDENTIFIER[4] data type. An OBJECT
IDENTIFIER is a simple ASN.1 data
type with special properties.
An OBJECT IDENTIFIER is a data type denoting an
authoritatively
named object, regardless of the type of the
object which it
names.
It is written as a sequence of non-negative integer values which
describe a traversal of a tree. The tree consists of a root
connected to a number of labelled nodes via edges.
Each label consists of a non-negative integer value and an
optional brief textual description (or Object
Descriptor).
The most common format for writing down the value of an OBJECT
IDENTIFIER is as a dotted sequence, thus:
1.0.8571.5.1
This identifies the object found by starting at the root, moving
to the node with label 1, then moving to the node with label 0,
and so on. The node found after traversing this list is the one
being identified.
[4] and the related Object Descriptor
type.
Global Naming
The root node has three subordinates:
- ccitt(0)
- which is administered by CCITT, nowadays
known simply
by its parent body's name, ITU...
- iso(1)
- administered by ISO/IEC, and the branch of
the tree of
most interest.
- joint-iso-ccitt(2)
- jointly adminstered by ISO and
CCITT.
ISO/IEC in turn defines four subordinates:
- standard(0)
- which has a subordinate tree for every
ISO
standard(!)
- registration-authority(1)
- defines OSI name
registration
authorities.
- member-body(2)
- the members (countries) which form
the ISO.
- identified-organisation(3)
- allocated by ISO/IEC
as it sees fit.
The US Govt. DoD, the original sponsoring organisation for the
TCP/IP protocol suite and the Internet is a subordinate of this
node. The Internet, in turn, is node 1 within DoD.

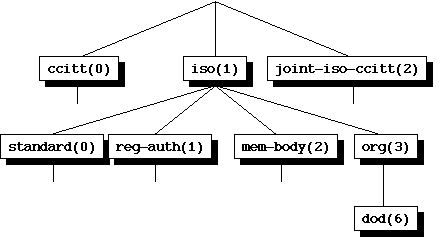

The Basic Tree

In ASN.1, an OBJECT IDENTIFIER is specified using the
following
syntax, eg:
Document-Type-Name ::=
OBJECT IDENTIFIER
fTAM-1 Document-Type-Name ::=
{ 1 0 8571 5 1 }
The textual values (Object Descriptors) may also be used,
and
mixed, where no confusion can arise, eg:
internet OBJECT IDENTIFIER ::=
{ iso org(3) dod(6) 1 }
or even just:
{ internet }
Registration Authority
To be useful, a name needs to unambiguous - this is done by
registration authorities. It also must be available to be
"looked
up" - this is the function of a directory service,
defined in OSI
by X.500.

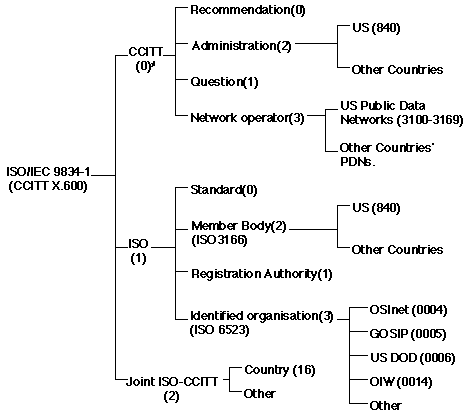

The OSI Name-Registration Hierarchy:

Note that CCITT no longer exists, having been subsumed into its
parent body, the ITU - how this affects the diagram is unclear to
your lecturer.
For more information on ASN.1, you might care to look at the
ASN.1 home page
This lecture is also available in PostScript format.
The tutorial for this lecture is Tutorial #14.
Phil Scott
